Signal Path Analyzers™
The HL2204 Signal Path Analyzer™ measures TDR, TDT, return loss, and insertion loss in high-speed interconnects, cables, and PCB traces.
With a fast 35 ps rise time and robust software controls, these instruments provide a cost-effective alternative to traditional benchtop test systems.
The included XTDR™ software for Windows displays full waveforms and numerical measurements in a highly-customizable user interface. The instrument is powered and controlled using a single USB cable.
The HL2202 Signal Path Analyzer™ measures TDR, TDT, return loss, and insertion loss in high-speed interconnects, cables, and PCB traces.
With a fast 35 ps rise time and robust software controls, these instruments provide a cost-effective alternative to traditional benchtop test systems.
The included XTDR™ software for Windows displays full waveforms and numerical measurements in a highly-customizable user interface. The instrument is powered and controlled using a single USB cable.HL2202 High-speed Signal Path Analyzer™
Time Domain Reflectometers

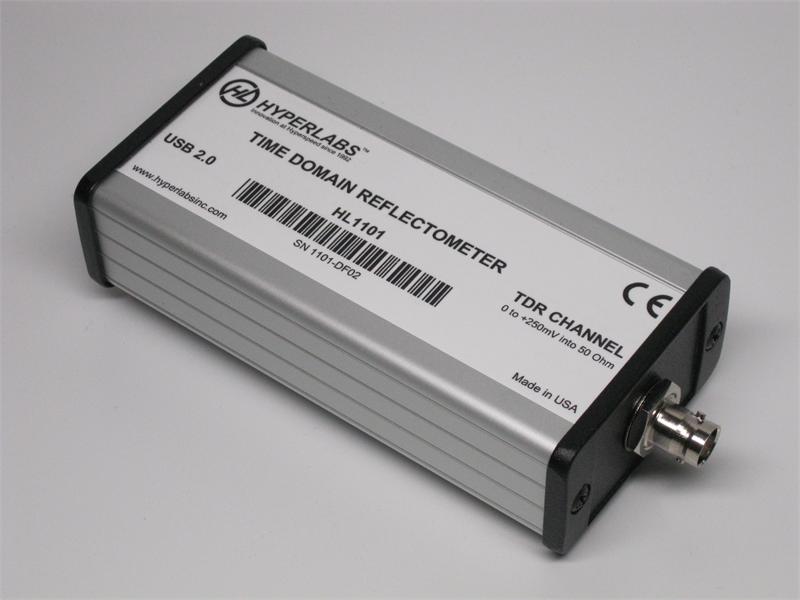

The HL1101 is an electrostatic-robust, USB-driven TDR suitable for deployment in a wide variety of lab, field, and industrial applications.
The included ZTDR™ software displays full waveforms and impedance measurements on any Windows PC.
Impulse Generators
The HL9201 triggerable impulse generator module generates a short positive going output pulse (50 ps rise time)for every positive going transition of the input signal.
Each pulse has a wide spectrum in the frequency domain extending into the Ultra Wide Band (UWB) communication region (2-10 GHz).
