We are please to be a reseller for Hyperlabs Ultra-broadband RF Components and other innovative test and measurement solutions

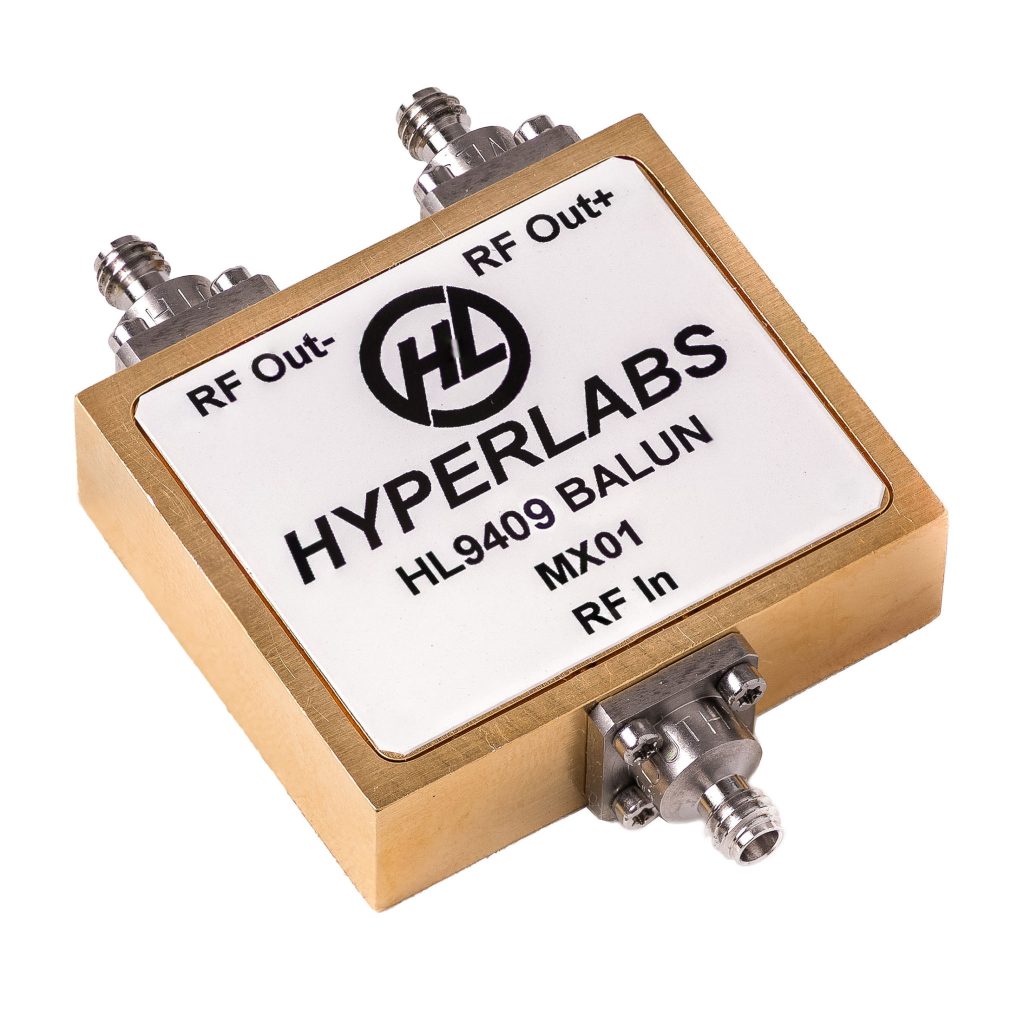

The HL9409 is an ultra-broadband 180° signal splitter and combiner that offers excellent amplitude and phase match over an industry-best bandwidth of 500 kHz to 100 GHz.
This ROHS-compliant product is suitable for use in 112 Gbps PAM4 communications systems, high-speed analog-to-digital conversion, frequency response testing for differential devices, and many other applications. (US$7,295)

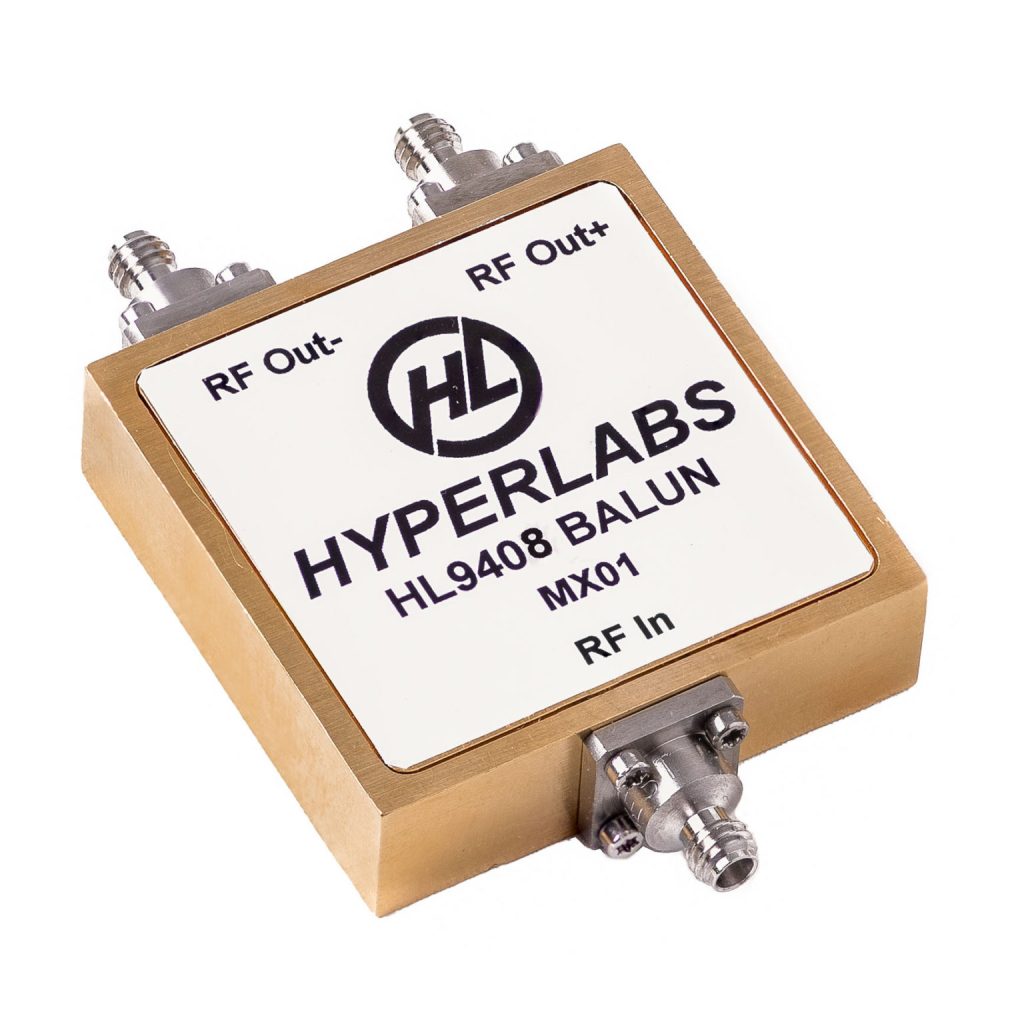

The HL9408 is an ultra-broadband 180° signal splitter and combiner that offers excellent amplitude and phase match over an industry-best bandwidth of 500 kHz to 85 GHz.
This ROHS-compliant product is suitable for use in 112 Gbps PAM4 communications systems, high-speed analog-to-digital conversion, frequency response testing for differential devices, and many other applications.
The HL9491 is a surface mountable (SMD) signal splitter and combiner that offers excellent amplitude and phase match over an industry-best bandwidth of
1 MHz to 20 GHz (3 dB).
This ROHS-compliant product is optimized for use in high-speed analog-to-digital conversion, differential signal generation, harmonic distortion minimization, and pulse inversion

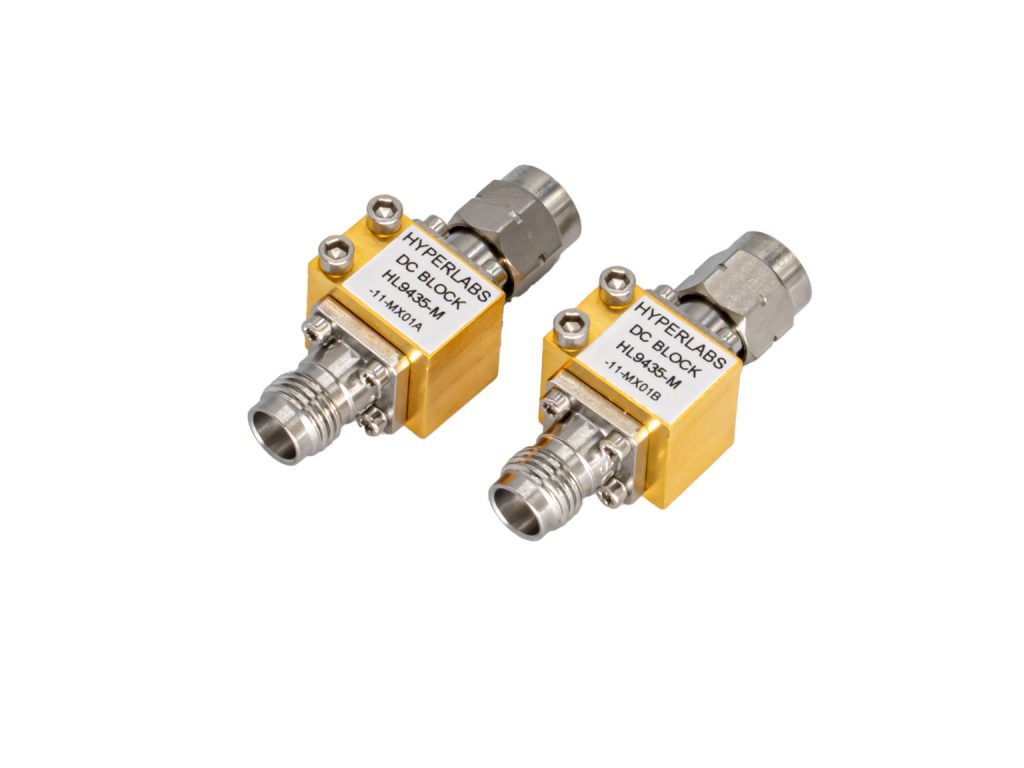

The HL9435 is an ultra-broadband DC Block with a typical insertion loss of < 1 dB to 50 GHz.
The DC block will remove DC bias from the input signal to prevent damage to DC-sensitive devices or equipment.
These devices are suitable for use in 112 Gbps PAM4 communications systems, optical communication systems, high-speed data systems, level shifting, cascading, and interfacing between devices with incompatible DC operating points.
They can also be used to improve RF power measurements when a power meter with DC sensitivities is used.
This part is available as matched pairs or individual units with breakdown voltage of 11 V or 30 V and a variety of connector configurations. (US$695-US$1,395)

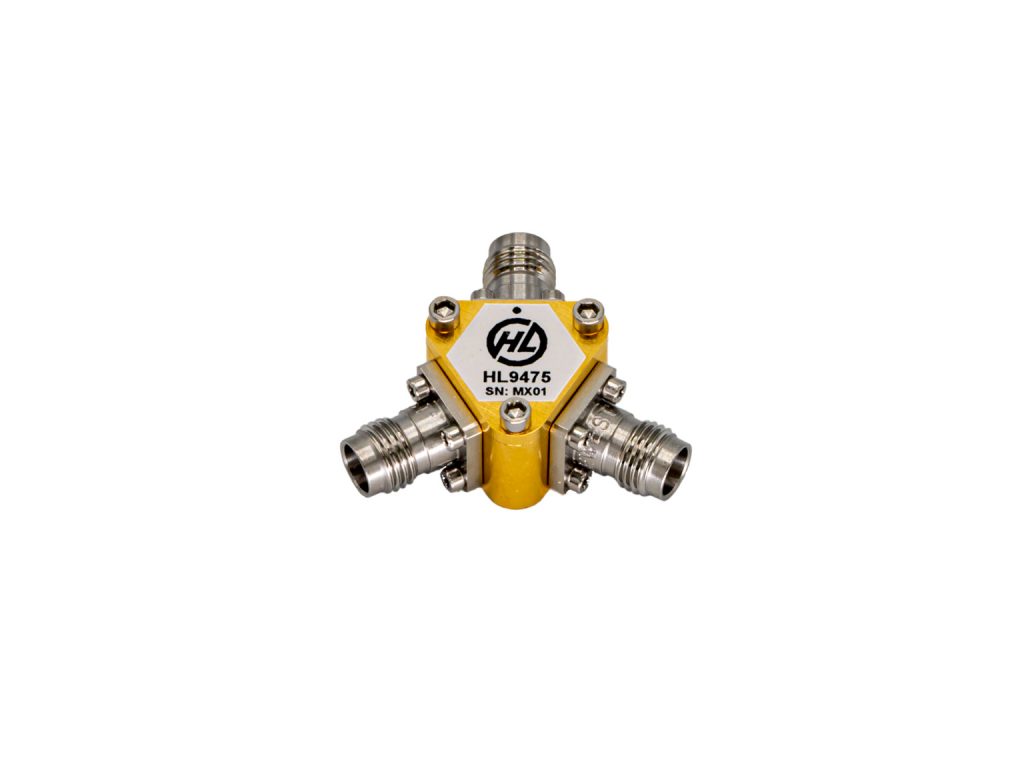

HL9475 Broadband Resistive Power Divider (DC to 50 GHz)
The HL9475 is a 6 dB power divider that provides outstanding amplitude and phase symmetrical power division from DC to 50 GHz.
This ROHS-compliant product is designed using a three-resistor network resulting in outputs that are nominally attenuated to 6 dB, and all ports are impedance-matched to 50 Ohms when the ports are terminated.
They are suitable for use in 112 Gbps PAM4 communications systems, high-speed analog-to-digital conversion, frequency response testing for differential devices, and many other applications.
Please contact us for more variations and configurations of baluns/ DC blocks, broadband amplifiers/Power dividers, etc
